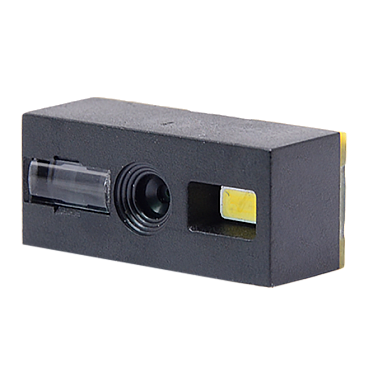

SYBLE-6266ENG 2D Image Module
SYBLE-6266ENG 2D Image Module
Syble

SYBLE-6266ENG 2D Image Module

Model: XB-S300
MPN: SYBLE-6266ENG
Description

2D image module

BackOrder

Price

Qty Standard Price
1
$46.00
In Stock: Ships Same Day
$46.00
Add to Cart Request A Quote
Buy Now Question
Add to Wish List Compare this Product

Features:

● Support WeChat, Alipay and other payment barcodes

● Higher decoding accuracy

● New decoding chip to interpret various one-dimensional and two-dimensional barcodes

● Universal data interface, support USB, TTL-RS232 interface, support USB direct connection to POS machine, support Android system equipment

Application field

Mainly used in supermarkets, specialty stores, retail stores, collections and payments, etc.


Technical Parameters

Product numberXB-S200
Performance parameter
type of light source617nm LED aiming light, white LED illuminating light
Decoding ability

1D: Codabar, Code 11, Code 93, Code 39, EAN-13, EAN-8,

UPC- A, UPC-E, Code 128, Interleave 2 of 5, Matrix 2 of 5,

MSI, Industrial 2 of 5, GS1 Databar.

2D: QR Code, Data Matrix, PDF417, Alipay invoice QR code

Scanning principleImage CMOS
Scan speed≥270 times/sec
Trigger methodManual scan/continuous scan/automatic scan
Scanning angleElevation angle ±65°, rotation angle 360°, deflection angle ±60°
Scanning accuracy≥5mil
Scan depth of field60-220mm
Bit error rate1/500 million
Communication InterfaceUSB-HID, RS232
Physical parameter
size28mm*11,8mm*12mm (length x width x height)
MaterialABS+PC
Environmental parameters
Operating temperature-20℃~60℃
storage temperature-40℃~70℃
Relative humidity5%~95% (no condensation)
Earthquake resistanceCan withstand a drop of 3 meters from the cement floor
Electrical parameters
VoltageWorking DC3.3V±1%
Current135mA

Interface definition

FPC 12pin pitch 0.5 data interface, the name and signal description of each PIN of the 12PIN connector are listed in the following table

PIN#

signal

I/ODescription
1

NC

-Hang in the air
2

VCC

-power supply
3

GND

-Power ground
4

RX

input OutputTTL-RS232 receiving
5

TX

input OutputTTL-RS232 transmission
6D-input O
