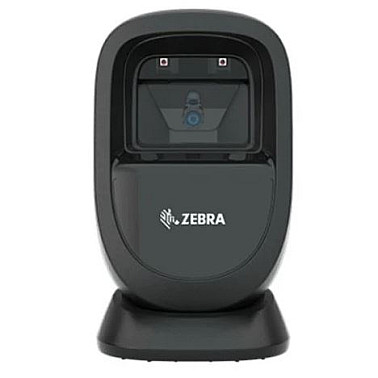

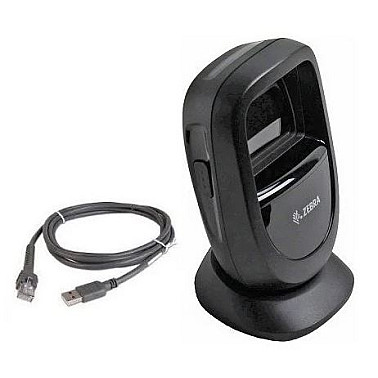

Zebra DS9308‑SR00004ZCWW DS9308 Standard‑Range 1D/2D Presentation Scanner (Checkpoint EAS)

The Zebra DS9308‑SR00004ZCWW is a compact, hands‑free presentation scanner optimized for point‑of‑sale and retail environments. Equipped with an 800 MHz processor, high‑resolution megapixel sensor and Zebra’s PRZM Intelligent Imaging, it reliably captures 1D and 2D barcodes—on paper or screens—even if they’re damaged, faded or behind cellophane. The integrated Checkpoint EAS tag‑deactivation feature streamlines checkout by combining scanning and anti‑theft deactivation in one pass. Durable IP52‑rated housing, a low‑profile footprint and multi‑position base make it ideal for space‑constrained counters.

Key Features:

• Model/Part: DS9308‑SR00004ZCWW
• Imager Type: 1D/2D area imager, standard range
• Processor & Decode: 800 MHz CPU + PRZM Intelligent Imaging technology.
• EAS Support: Built‑in Checkpoint Electronic Article Surveillance deactivation.
• Form Factor: Corded, hands‑free “presentation” scanner with multi‑position ratcheting base.
• Durability: IP52 sealing; withstands multiple 5 ft/1.5 m drops & 1,000 × 1.5 ft tumbles.
• Footprint: Near‑zero countertop space; 45° angled cable connector reduces obstruction.
• Scan Performance: Up to 50% faster swipe speeds than competitors; large field of view for “sweet‑spot” ease.
• Symbologies: Virtually all 1D/2D (PDF417, DataMatrix, QR, DotCode, Digimarc) plus document capture and DL parsing.
• Connectivity: Requires host interface cable (USB/RS‑232/Keyboard‑wedge as configured)
• Use Cases: Retail POS, grocery, QSR, hospitality, ticketing, loyalty/mobile coupon scanning
