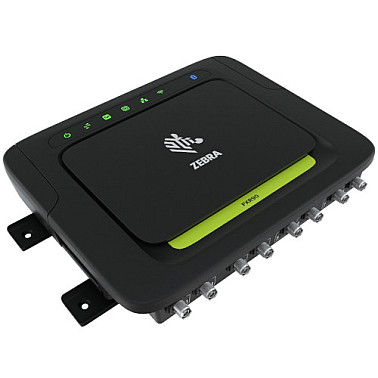

Zebra FXR90001‑400000‑US – FXR90 Ultra‑Rugged Fixed UHF RFID Reader, 4‑Port, Integrated Antenna

Zebra FXR90001‑400000‑US – Ultra‑Rugged Fixed UHF RFID Reader (4‑Port)

Engineered for harsh industrial environments, the Zebra FXR90001‑400000‑US (FXR90) is a fixed UHF RFID reader with a built-in cross-polarized antenna and four external RP‑TNC ports. Rated IP65/IP67, it withstands dust, moisture, washdowns, and extreme temperatures from –40 °C to +65 °C. Delivering a read rate of 1,300+ tags/sec, sealed M12 connectors, and ultra-sensitive reception (<–92 dBm), it offers unparalleled reliability.

With a host of built-in wireless options—including Wi‑Fi 6, Bluetooth 5.3, 5G/CBRS (optional), and GPS—the FXR90 supports versatile deployments both indoors and outdoors, simplifying setup without running long antenna cables. Its Linux-based processing platform enables IoT Connector integration and additional machine-edge capabilities.

Key Features:

• Ultra‑rugged design: Dual IP65/IP67 and –40 to +65 °C operation

• High performance: >1,300 tags/sec with high receiver sensitivity

• RF connectivity: Built-in antenna + 4 external RP‑TNC ports

• Multi-network options: Wi‑Fi 6, Bluetooth 5.3, optional 5G/CBRS, GPS

• IoT-ready: Linux OS with edge software tools (e.g. IoT Connector)

• Secure & sealed: M12 connectors, weather-proof design for industrial use
