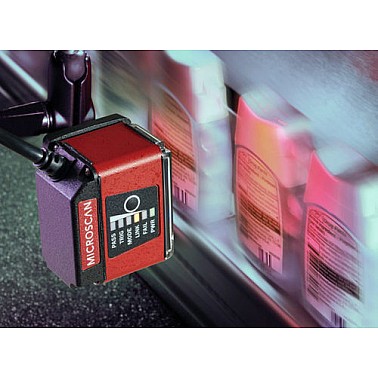

7312-4000-2003 MicroHAWK ID-30 Serial/USB Miniature Barcode

MicroHAWK ID-30

MicroHAWK ID-30 Serial/USB Miniature Barcode

A micro-sized barcode imager with huge potential, the MicroHAWK ID-30 furthers Omron Microscan’s 30+ year legacy of innovative, space-efficient, miniature design with a corner-exit cable and high-density 15-pin connector (offering serial, USB 2.0, and Ethernet over USB capabilities) as well as optional liquid lens autofocus. Perfect for OEMs and machine builders, the ID-30 offers the perfect combination of size, performance, and flexible integration. The ID-30 outperforms any reader in its class and is the ideal solution for automation engineers looking for incredible performance in a micro-sized product.

Features:

• Ultra-compact (44.5 mm x 38.1 mm x 25.4 mm)
• IP54
• Serial, USB 2.0, Ethernet over USB
• X-Mode advanced decoding algorithms
• Optional liquid lens autofocus
• Integrated targeting and read/pass indicators
• WebLink browser-based setup interface
• Now with long range auto-focus capability

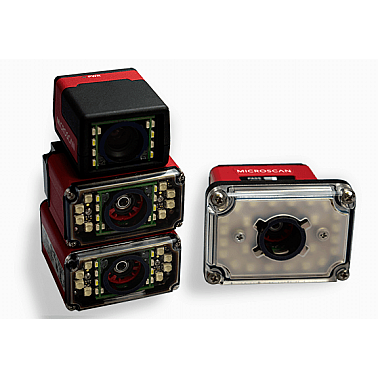

The MicroHAWK® family of barcode readers offers the most versatile decoding power available. Built on the highest-performance imaging engine in its class, MicroHAWK readers offer an array of modular hardware options to take on any decoding task in four micro form factors. MicroHAWK readers include features such as integrated lighting and targeting LEDs, flexible cabling, omnidirectional reading, and selectable read ranges from 50 to 300 mm (2 to 12 in.) or liquid lens autofocus from 50mm to 1160 mm (2 in. to 46 in.) to read codes at a highly variable range.

https://assets.omron.com/m/3b3a2875801e97c5/original/MicroHAWK-Long-Range-Data-Sheet.pdf
