C5-AB EXPLOSION PROOF

Name: C5-AB EXPLOSION PROOF
Brand: APG Vision - Allison Park Group
Price: 1558.2 USD

Product Code: C5-AB

MPN: C5-AB

Description

C5-AB Enclosure

Contact for Pricing & Availability

Please use the contact button below, or contact [email protected] for further assistance.
Request a Lead Time

Price

Qty	Standard Price
1	$1,558.20

Available Options - CALL FOR BEST PRICING

Available Options

Contact for Assistance

Buy Now Question

Description
Reviews

Compliance with NEC Class I, Div 1 & 2 Groups B, C & D, Class II, Div 1 & 2 Groups E, F & G, Class III

UL Classified

CSA Certified - Standard C5 No. 30-M1984

CENELEC approval

NEMA 3, 4X, 7 & 9

Cast aluminum construction

Two 3/4" NPT fittings for cable conduit

EXPLOSIVE ENVIRONMENT, NEMA4X

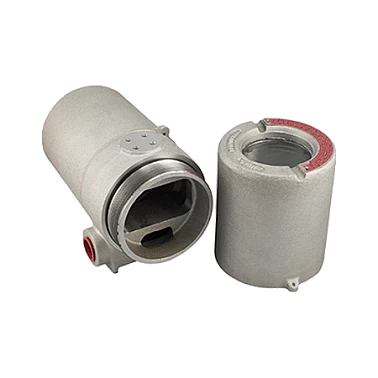

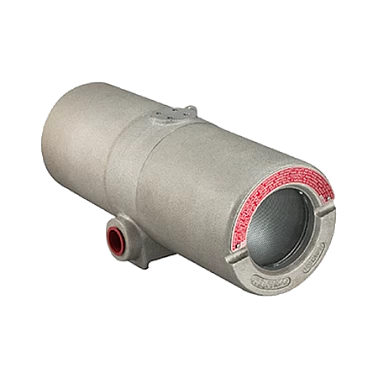

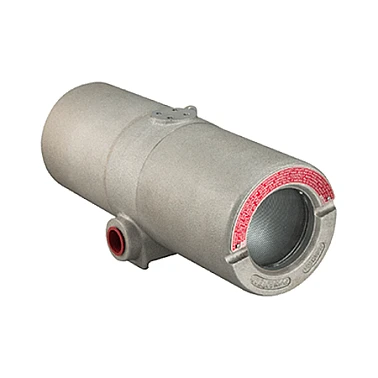

The C5 explosion proof enclosure offers compliance with NEC Class I, Groups B, C and D and Class II, Groups E, F and G.

The C5 explosion proof enclosure offers compliance with NEC Class I, Groups B, C and D and Class II, Groups E, F and G. These Classifications and Groups are covered in Article 500 of the National Electrical Code.

The enclosure is also NEMA 4X rated, allowing use in a salt-water washdown environment.

The C5 Series will accommodate larger diameter cameras and ringlights.

The C5 enclosure includes two 3/4″ NPT tapped holes for conduit attachment. Additional conduit entry can be added if factory instructions are followed.
