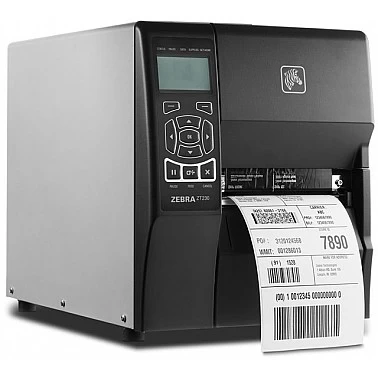

ZT23043-T11200FZ Barcode Label Printer
ZT23043-T11200FZ Barcode Label Printer
ZT23043-T11200FZ Barcode Label Printer
ZT23043-T11200FZ Barcode Label Printer
Contact Us
ZT23043-T11200FZ Barcode Label Printer
ZT23043-T11200FZ Barcode Label Printer
ZT23043-T11200FZ Barcode Label Printer
ZT23043-T11200FZ Barcode Label Printer

ZT23043-T11200FZ Barcode Label Printer

Product Code: ZT23043-T11200FZ
MPN: ZT23043-T11200FZ
Description

Zebra ZT230 - Thermal transfer printing, 300 dpi, 4" print width, Serial, USB, and Ethernet Interfaces, Peeler, and US Power cord. Cables sold separately.

Contact for Pricing & Availability

Please use the contact button below, or contact [email protected] for further assistance.

Request a Lead Time

Price

Qty Standard Price
1
$1,554.40
Contact for Assistance

Zebra ZT23043-T11200FZ Barcode Label Printer

Whether you are adopting barcode technology for the first time or upgrading existing printe

r models, the ZT230 Series is the right choice for a variety of labeling applications. These innovative printers provide many user benefits. The ZT230 Series offers a streamlined design and smaller footprint that takes up less physical space than the Stripe and S4M models. ZT200 Series printers require minimal operator training and benefit from tool-less standard component maintenance and a durable design to minimize service






Technical Information:

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Cutter
    • Clear Bi-fold Media Side Door
    • Element Energy Equalizer
    • Bi-color LED
    • Icon-graphics
    • Tear Bar
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • RSS Composite
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • RSS-14
    • Aztec Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: ZT200
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZT230
  • Product Name: ZT230 Industrial Printer

Physical Characteristics

  • Height: 10.9"
  • Width: 9.5"
  • Depth: 17"
  • Form Factor: Desktop
  • Weight (Approximate): 20 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Package Contents:
    • ZT230 Industrial Printer
    • Power Cord with US Plug
    • ZT230 Industrial Printer
    • Power Cord with US Plug
  • Certifications & Standards:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • UL
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • Unicode
    • KCC
    • BSMI
    • UkrSepro

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Notch
    • Black Mark
  • Media Handling: 1 x Catch Tray
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 128 MB
  • Memory Technology: DRAM
  • Flash Memory: 128 MB

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: ZPL



BrandZebra
ModelZT230
Print Speed6
Print MethodThermal Transfer
Max Label Width4.50
Max Roll Outer Diameter8
Maximum Print Width4.90
Included FeaturesCutter
BrandZebra
Printer TypeIndustrial
Print Resolution300 dpi
Printer MobilityNot Mobile
Ribbon Core1
Label Core
