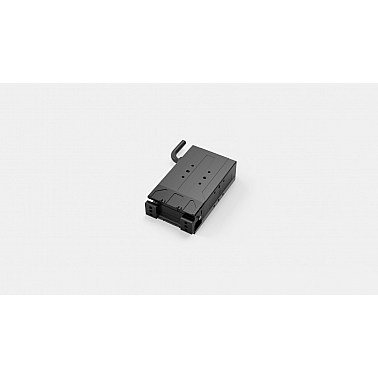

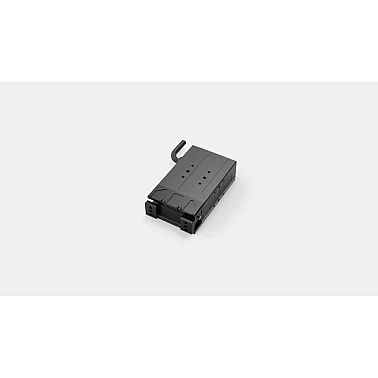

DH Robotics PGE-50-26 Electric Parallel Gripper

DH Robotics PGE-50-26 Gripper

The PGE-50-26 is a compact, electric parallel gripper from DH Robotics, designed for high-speed and precision applications in automation environments like electronics, medical devices, and semiconductors.

Key Features:

• Compact Size: 97 x 55 x 29 mm

• Stroke: 26 mm

• Gripping Force: 15–50 N (±0.1 N repeatability)

• Position Repeatability: ±0.02 mm

• Fast Operation: Open/close time of 0.45 s

• Quiet: < 40 dB noise level

• Lightweight: 0.4 kg

• Self-locking: Maintains grip during power loss

• Built-in Controller: Simplifies integration

• Intelligent Feedback: Real-time data on force, position, and status

Communication Options:

• Standard: RS485 (Modbus RTU), Digital I/O

• Optional: TCP/IP, USB, CAN, PROFINET, EtherCAT

Power & Environment:

• Voltage: 24V DC ±10%

• Current: 0.25 A (peak 0.5 A)

• IP Rating: IP40

• Operating Temp: 0–40°C

Certifications:

• CE, FCC, RoHS
