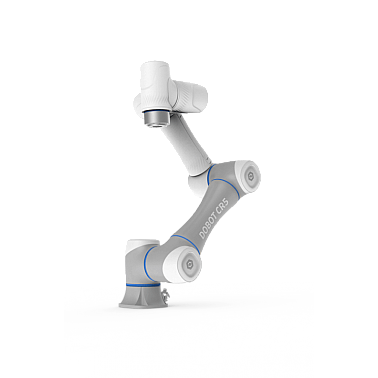

Dobot CR5AS Collaborative Robot

Dobot CR5AS Collaborative Robot – 5kg Payload | SafeSkin Technology | Precision with Built-In Safety

Safety Meets Precision in Smart Automation

The Dobot CR5AS takes collaborative robotics to the next level by combining industrial-grade precision with intelligent safety technology. Designed for environments where human-robot interaction is essential, the CR5AS features integrated SafeSkin, a pre-collision detection system that senses nearby objects within 15 cm and reacts in 0.01 seconds, helping avoid contact and downtime.

It maintains all the key benefits of the CR5A, including ±0.02mm repeatability, drag-to-teach programming, and compatibility with graphical and code-based interfaces like Python and C++. The CR5AS is built for modern manufacturing, healthcare, electronics, and consumer industries where safety, speed, and precision are a must.

Key Features & Benefits:

???? 5kg Payload Capacity – Perfect for light to medium tasks including pick-and-place, tool operation, and inspection.

???? 900mm Reach – Wide working radius for greater flexibility in layout and integration.

???? ±0.02mm Repeatability – Ensures micron-level accuracy for critical automation needs.

???? SafeSkin Pre-Collision Technology – Senses obstacles up to 15 cm away, reacts in 0.01 seconds to reduce impact risk.

???? Adjustable Collision Sensitivity – Choose from five safety levels to suit specific workflows.

????‍???? Easy Programming – Use drag-to-teach, graphical UI (DobotStudio), or script in Python, C, C++.

???? Smart Integration – Supports TCP/IP, Modbus, and dual WAN connections for easy system connectivity.

????️ IP54 Rated – Resistant to dust and water spray, built for real-world industrial use.

⚙️ Fast Deployment – Ready to run in less than an hour; no extensive setup required.

Ideal Applications:

✅ Electronics Assembly & Testing

✅ Screwdriving & Tool Automation

✅ Visual Inspection & Bin Picking

✅ Machine Tending (CNC, medical device loading, etc.)

✅ Packaging, Handling, and Sorting

✅ Consumer Goods & Light Manufacturing

✅ Healthcare & Food Industry Automation

Technical Specifications:

Model: Dobot CR5AS

Degrees of Freedom: 6

Payload: 5kg

Reach: 900mm

Repeatability: ±0.02mm

Max TCP Speed: 2 m/s

Weight: 25kg

Power Supply: 100–240V AC, 47–63Hz

IP Rating: IP54

Communication: 2× WAN, TCP/IP, Modbus, Wi-Fi

SafeSkin Detection Range: Up to 15 cm

Response Time: ≤0.01 seconds

Materials: Aluminum Alloy, ABS Plastic

Operating Temp: 0°C to 50°C

Software: DobotStudio, DobotSCStudio, API, Python, C++

What’s in the Box:

???? Dobot CR5AS Robotic Arm

???? Control Box with SafeSkin Tech

???? Power Supply & Cables

???? Mounting Kit & Tools

???? Software Access

???? User Manual & Setup Guide

Why Choose Dobot CR5AS?

✔ Advanced Safety with Built-In SafeSkin Collision Detection

✔ High-Precision Performance for Delicate Tasks

✔ Flexible Programming for Any Skill Level

✔ Fast Setup & Integration with Existing Systems

✔ Ideal for Industrial, Educational, and Medical Use

???? Automate with Confidence – Choose the Dobot CR5AS Today!
