Dobot M1 Pro SCARA Robot

Dobot

Dobot M1 Pro SCARA Robot

Name: Dobot M1 Pro SCARA Robot
Brand: Dobot
Price: 5990 USD

Model: M1 Pro

MPN: 1200000016

Description

M1 Pro, Axes 4, Payload 1.5kg, Reach 400mm (max), Repeatability ±0.02mm, Joint Ranges J1 ±85°, Joint Ranges J2 ±135°, Joint Ranges J3 5mm ~ 245mm, Joint Ranges J4 ±360°

BackOrder

Contact for Pricing & Availability

Please use the contact button below, or contact [email protected] for further assistance.
Request a Lead Time

Price

Qty	Standard Price
1	$5,990.00

$5,990.00

Qty

Contact for Assistance Add to Cart Request A Quote

Buy Now Question

Add to Wish List Compare this Product

Description
Reviews

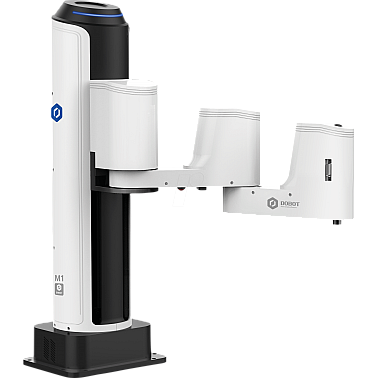

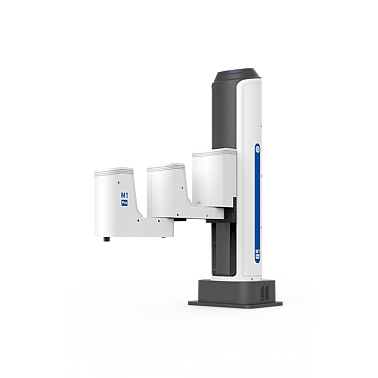

Dobot M1 Pro SCARA Robot – 1.5kg Payload | 400mm Reach | High-Speed 4-Axis Industrial Automation

Fast, Accurate, and Easy-to-Deploy SCARA Robot for Modern Automation

The Dobot M1 Pro SCARA Robot delivers industrial precision in a compact, cost-effective package. Designed for small part handling and high-speed cycles, the M1 Pro features a 400mm reach, 4-axis motion, and maximum TCP speed of 2 m/s, enabling fast throughput in repetitive, light-duty automation tasks.

Thanks to its integrated controller, streamlined body, and plug-and-play design, the M1 Pro enables quick setup with minimal wiring. Its open architecture supports TCP/IP, Modbus TCP, and Modbus RTU communication, ensuring easy integration with PLCs, sensors, conveyors, and existing automation systems.

Whether for electronics manufacturing, healthcare labs, R&D, or precision assembly, the M1 Pro SCARA Robot provides the accuracy, safety, and adaptability needed in high-performance production environments.

Key Features & Benefits:

1.5kg Payload Capacity – Ideal for lightweight parts and tool handling tasks
400mm Working Radius – Designed for compact stations and high-density lines
±0.02mm Repeatability – Ultra-precise movement for tasks like soldering, inspection, or part placement
2 m/s TCP Speed – High-speed operation for fast-cycle automation
Integrated Controller Design – Simplifies wiring and reduces installation time
Flexible Programming – Supports Python, Java, and graphical programming via DobotStudio Pro
Conveyor Tracking Support – Perfect for dynamic, real-time material handling
Wide Communication Support – TCP/IP, Modbus TCP, Modbus RTU compatible
Compact Footprint – Weighs just 15.7kg, great for benchtop or mobile setups

Ideal Applications:

Pick-and-Place Automation
Assembly Line Tasks
Gluing, Dispensing, and Coating
Testing and Sorting
Surface Mount or Small Part Handling
Vision-Based Quality Inspection
Lab & Cleanroom Automation

Technical Specifications:

Model: Dobot M1 Pro
Degrees of Freedom: 4
Payload Capacity: 1.5kg
Working Radius: 400mm
Repeatability: ±0.02mm
Max TCP Speed: 2 m/s
Robot Weight: 15.7kg
Rated Voltage: 100–240V AC, 50/60 Hz
Range of Motion:
J1: ±85°
J2: ±135°
J3 (Z-axis): 5mm to 245mm
J4 (Rotation): ±360°
Max Joint Speed:
J1/J2: 180°/s
J3: 1000 mm/s
J4: 1000°/s
Communication Interfaces: TCP/IP, Modbus TCP, Modbus RTU
Supported Software: DobotStudio Pro, Python, Java, C/C++
Mounting Orientation: Desktop / Stationary / Mobile
Operating Temperature: 0° to 45°C

What’s in the Box:

Dobot M1 Pro SCARA Robot
Integrated Controller
Power Supply & Cables
Software Access (DobotStudio Pro)
Mounting Accessories
User Manuals & Setup Guide

Why Choose the Dobot M1 Pro?

✔ Compact, High-Speed SCARA Robot

✔ Fast Deployment with Integrated Controller

✔ Perfect for Electronics, Food & Beverage, and Medical Use

✔ Supports Flexible, Graphical, and Script-Based Programming

✔ Cost-Effective, Professional-Grade Automation

Get your production line moving with the Dobot M1 Pro – Precision Automation Made Simple.

Tags: Dobot M1 Pro , SCARA Robot , 4-Axis Robotic Arm , 1.5kg Payload , Pick and Place Robot , Assembly Automation , Gluing Robot , Conveyor Tracking , Compact Industrial Robot , Lightweight SCARA , High-Speed Robot Arm , Python Programmable Robot , Dobot Robotics , Small Parts Assembly Robot , Benchtop Automation
