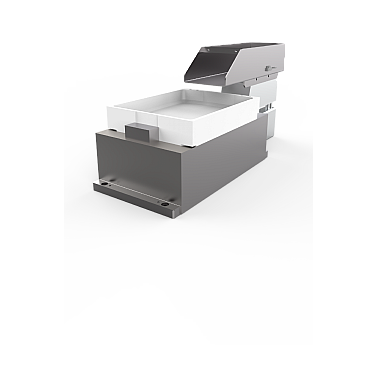

Dobot Flexible Feeder Kit

Flexible Feeder FF200 Kit

Overall size: 316*171*131mm (A*B*F)

Size of pickup window: 195*150*105mm

(D*E*G)

Typical Part Size: 2 mm ~ 40 mm

Fix hole size for installation: 301*125*φ6.6 mm

Feeder and backlight weight: 8kg

Maximum payload of pickup window: 0.5 KG

Amplitude of vibration surface: G±3mm

Maximum displacement of vibration plate: 2-3-2

Maximum vibration frequency: 100 HZ

(configurable)

Limit suspension product height in vibration: 50 mm

Communication mode of testing software: Standard 232 Serial Port

External trigger mode: Triggered by passive I/O

Linear Vibrating Stock Bin Voltage: 50-220V adjustable V/F control

Frequency: 50 Hz - 80 Hz Payload: 3kg

Dimension: 270 * 90* 202 mm Weight: 8kg
