GEVA 300

FLEXIBLE POWER, EASY TO USE.

Great power at a great price

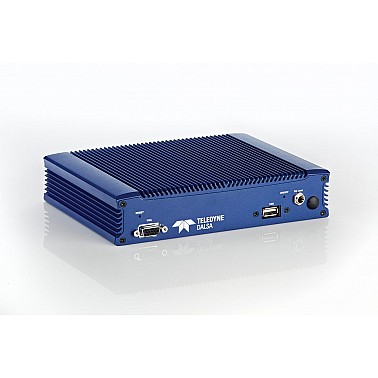

The new GEVA-300 is a fanless, compact vision system for multi-camera applications. Like the more robust GEVA-1000, the GEVA-300 features expandable Gigabit Ethernet camera interfaces to offer higher performance at lower cost, but also delivers space savings thanks to the new smaller, fanless form factor, tolerating harsh factory conditions and varying temperatures

Based on the Intel® dual-core ATOM™ architecture, the GEVA-300 offers robust performance for a wide range of machine vision applications at low power consumption levels. With 6 dedicated GigE ports and 2GB of high-speed DDR2 memory, the GEVA-300's processing power rivals that of the VA4x series while still offering savings in both cost and energy consumption.

The GEVA-300 supports a wide variety of GigE area and line scan cameras, including Teledyne DALSA's own Genie cameras, and is offered with either iNspect Express or Sherlock software running on the Microsoft® Windows® 7 Embedded Operating System.

PL-USB Companion I/O Module

The GEVA-300 also accepts the new PL-USB companion I/O expansion module, allowing for easy integration of up to 4 additional Teledyne DALSA Genie cameras. The PL-USB's DIN mountable plastic enclosure makes installation simple without sacrificing valuable panel space, and its compatibility with the same cables as the GEVA-1000 as well as iNspect Express and Sherlock software ensures quick and easy integration into any GEVA-300 system.
