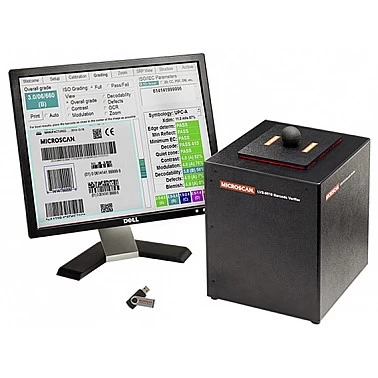

Omron LVS-9510-5-4.0 Desktop Barcode Verifier

The Omron LVS-9510-5-4.0 is a high-performance desktop barcode verifier with a 4-inch field of view, designed to verify both 1D and 2D barcodes in compliance with ISO/IEC, ANSI, GS1, and UDI standards. Equipped with a 5.0-megapixel monochrome camera and white LED illumination, it delivers accurate, high-resolution verification for a wide range of barcode symbologies. This verifier is ideal for use in regulated industries such as pharmaceuticals, medical devices, and packaging, and is 21 CFR Part 11 compliant-ready. It includes a calibrated NIST-traceable test card to ensure reliable performance.

Key Features

• Field of View: 4 inches (102 mm) – supports large barcodes and labels

• Camera: 5.0-megapixel high-resolution monochrome sensor

• Lighting: White LED with 660 nm red filter for optimal barcode illumination

• Verification Support: 1D and 2D symbologies (linear, stacked, matrix)

• Standards Compliance: ISO/IEC, ANSI, GS1, UDI, and 21 CFR Part 11-ready

• Automatic Symbology Detection: Software automatically identifies barcode type and aperture

• Calibration: Comes with a NIST-traceable conformance test card

• Software Upgrade Options: Available for advanced features like multi-sector grading

• Applications: Ideal for pharma, life sciences, medical device manufacturing, and quality control labs
