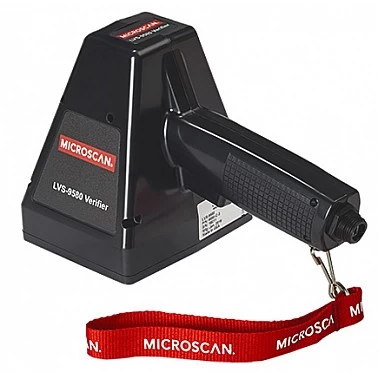

Omron LVS-9580-1D-3 Handheld 1D Barcode Verifier

The Omron LVS-9580-1D-3 is a handheld barcode verifier engineered specifically for 1D linear barcode verification. Powered by a 5MP camera, it provides precise grading of widely used 1D symbologies such as UPC, EAN, Code 39, and Code 128.

This model ensures compliance with ISO/IEC 15416 and GS1 standards, making it the ideal verifier for industries that rely heavily on linear barcodes, including retail, logistics, and warehousing.

Compact, portable, and powered via USB 2.0, the LVS-9580-1D-3 is easy to integrate into quality control workflows. Each unit comes with a calibrated test card to ensure consistent accuracy and reliability.

Key Features

• 5MP High-Resolution Camera for accurate 1D barcode verification
• Optimized for Linear 1D Codes – UPC, EAN, Code 39, Code 128, ITF-14, GS1 DataBar
• Standards Compliance – ISO/IEC 15416 & GS1
• USB 2.0 Bus-Powered – portable, no external power required

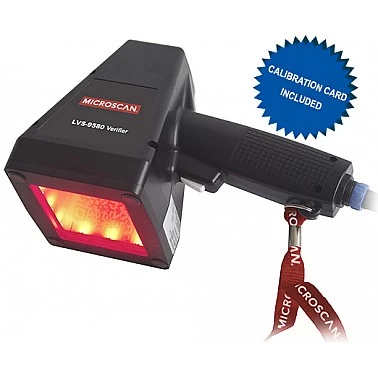

• Calibration Test Card Included for consistent accuracy
• Compact Handheld Design for use in retail, logistics, and supply chain environments

Comparison Table – LVS-9580 Models

• Model	Barcode Type	Camera Resolution	Standards Compliance	Key Applications	Field of View	Special Features
  LVS-9580-C-3	1D & 2D Labels	5MP	ISO/IEC 15415, 15416, GS1, UDI	Packaging, Logistics	76 × 57 mm	Wide field of view for labels
  LVS-9580-1D-3	1D Labels Only	5MP	ISO/IEC 15416, GS1	Retail, Warehousing	Standard	Optimized for linear barcodes
  LVS-9580-2D-3	1D & 2D Labels	5MP	ISO/IEC 15415, 15416, GS1, UDI	Healthcare, Pharma, Manufacturing	Standard	Optimized for 2D codes
  LVS-9580-DPM	DPM + Labels	5MP	ISO/IEC 15415, 15416, TR 29158, GS1, UDI	Aerospace, Automotive	Standard	Verifies direct part marks
  LVS-9580-DPM-HD	Ultra-Small DPM + Labels	5MP HD	ISO/IEC TR 29158, GS1, UDI, MIL-STD-130	Electronics, Medical Devices	33 × 25 mm (HD)	Verifies codes down to 2 mil

  Buying Guide


  LVS-9580-1D-3 → Best if your operations rely on linear 1D codes (retail, warehousing, supply chain).

  LVS-9580-C-3 → Best for verifying general 1D & 2D labels with a wide field of view.

  LVS-9580-2D-3 → Best for verifying 2D codes like DataMatrix or QR in pharma/healthcare.

  LVS-9580-DPM / DPM-HD → Required if you need to verify direct part marks.


  FAQ Section

  Q: What barcodes does the LVS-9580-1D-3 support?
  A: It supports all major 1D linear symbologies, including UPC, EAN, Code 39, Code 128, ITF-14, and GS1 DataBar.

  Q: What compliance standards does it meet?
  A: It complies with ISO/IEC 15416 and GS1 standards.

  Q: Does it verify 2D barcodes?
  A: No, the LVS-9580-1D-3 is optimized for 1D codes only. If you need 2D verification, choose the LVS-9580-2D-3.

  Q: What industries use this model?
  A: It is commonly used in retail, warehousing, and logistics.

  Q: Is calibration included?
  A: Yes, it ships with a calibrated conformance test card.
