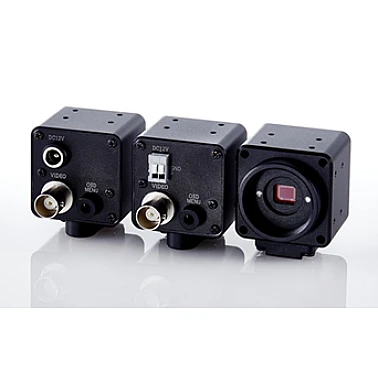

Omron Sentech STC-S133N-BT Color TV Format CMOS Camera (NTSC, CS-Mount with IR Cut Filter)

The Omron Sentech STC-S133N-BT is a compact 1/3.2" CMOS color camera designed for NTSC TV format analog output. Powered by the Sony ISX017 sensor, it delivers 1,280 × 486 effective pixels at a smooth 59.94 fps, providing reliable video performance for industrial and embedded vision applications.

This model features a CS-Mount lens interface, giving users flexibility to choose from a wide range of industrial lenses. It also includes an integrated IR cut filter to ensure accurate color reproduction under varying lighting conditions. The camera’s compact housing (36 × 36 × 37 mm) makes it easy to integrate into machine vision systems, inspection equipment, and embedded solutions.

Despite its small form, the STC-S133N-BT provides advanced functions such as auto/manual/push-to-set white balance, analog gain control (0–40 dB), image flip (horizontal/vertical), defective pixel correction, and full scanning/free-run operation. With low power consumption (<0.78 W) and a wide supply voltage range (+5.6 to +13.2 VDC), this NTSC camera ensures stable operation in industrial environments.

Key Features:

• 1/3.2" Sony ISX017 CMOS Sensor with 1,280 × 486 effective pixels.
• NTSC TV Format Analog Output at a smooth 59.94 fps.
• CS-Mount Lens Interface for flexible lens compatibility.
• Integrated IR Cut Filter ensures accurate color reproduction.
• Compact Housing: 36 × 36 × 37 mm design for easy system integration.
• Advanced Imaging Controls: Auto/manual/push-to-set white balance, analog gain (0–40 dB), image flip (horizontal/vertical).
• Rolling Shutter Exposure adjustable from 1.65 ms to 16 ms.
• Defective Pixel Correction maintains image quality consistency.
• Full Scanning & Free-Run Modes for versatile imaging setups.
• Low Power Operation: Consumes less than 0.78 W, powered by +5.6 to +13.2 VDC.
• Industrial Reliability: Stable performance in demanding environments.
