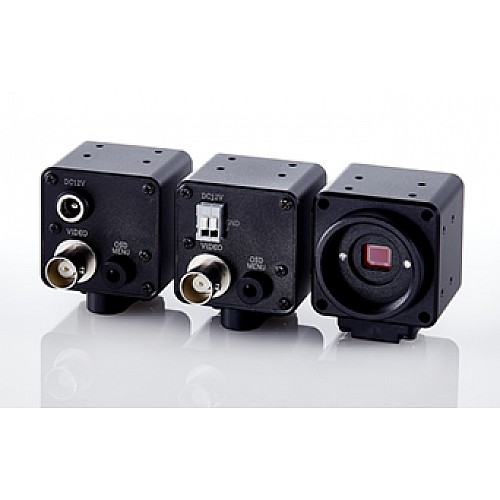

Omron Sentech STC-S133P-BJ Color TV Format CMOS Camera

The Omron Sentech STC-S133P-BJ is a compact 1/3.2" CMOS color camera designed for PAL TV format analog output, delivering reliable performance for industrial and inspection applications. Equipped with the Sony ISX017 image sensor, it provides sharp 1280 × 924 resolution video with accurate color reproduction and low noise.

Its CS-mount design supports a wide selection of lenses, while built-in functions such as auto/manual white balance, analog gain control, image flip (vertical/horizontal), and defective pixel correction enhance imaging versatility. The camera’s rolling shutter supports exposure times from 1.65 ms to 20 ms, and with a 50 fps frame rate, it’s well-suited for dynamic industrial environments.

With a compact 36 × 36 × 37 mm housing, lightweight build (~68 g), and low power consumption (<0.78 W), the STC-S133P-BJ is engineered for dependable integration in machine vision, inspection systems, medical imaging, and other analog video solutions where space and efficiency are critical.

Key Features:

• High-Resolution Output: 1/3.2" CMOS sensor (Sony ISX017) with 1280 × 924 pixels for clear PAL video.
• TV Format (PAL) Analog Output: Standard BNC connector for easy integration with legacy video systems.
• Compact & Lightweight Design: Small 36 × 36 × 37 mm housing, weighing only ~68 g.
• Flexible Lens Mount: CS-mount compatibility for a wide range of industrial lenses.
• Advanced Image Controls: Auto/manual/push-to-set white balance, analog gain adjustment (0–40 dB), and image flip (horizontal/vertical).
• Rolling Shutter Imaging: Exposure times adjustable from 1.65 ms to 20 ms, supporting up to 50 fps.
• Low Power Consumption: Operates on +5.6 to +13.2 VDC with <0.78 W usage.
• Industrial Reliability: Built with defective pixel correction and robust performance for demanding environments.
