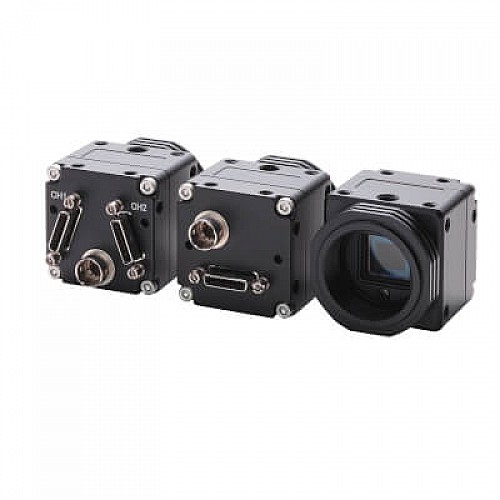

Omron Sentech STC-SPC881PCL – 8.9MP Color Camera Link Global Shutter CMOS Camera

The Omron Sentech STC-SPC881PCL is a high-resolution 8.9MP color Camera Link industrial camera designed for applications that require exceptional image detail and reliable data transfer. Built with the Sony IMX267 global shutter CMOS sensor, it delivers crisp, distortion-free images with accurate color reproduction, even when capturing moving objects.

With a resolution of 4096 × 2160 pixels and a frame rate of up to 20.63 fps, the STC-SPC881PCL is ideal for tasks where image clarity and precision matter more than maximum speed. Its Camera Link interface (Base/Medium/Full modes) ensures high-bandwidth, low-latency transmission for integration into machine vision systems.

Compact and versatile, with a 35 × 35 × 40.7 mm housing and C-mount lens compatibility, this camera is well suited for OEM designs and space-constrained installations. Additional features include ROI scanning, image flip, defective pixel correction, and multiple trigger modes, providing flexibility for a wide range of industrial inspection and measurement applications.

Typical use cases include electronics inspection, PCB and semiconductor metrology, surface defect detection, packaging, and precision measurement systems.

Key Features:

• 8.9MP resolution (4096 × 2160) for high-precision color imaging
• Sony IMX267 global shutter CMOS sensor for distortion-free image capture
• Camera Link interface (Base / Medium / Full modes) for high-bandwidth, low-latency data transfer
• Frame rate up to 20.63 fps at full resolution (8-bit)
• Pixel size: 3.45 µm × 3.45 µm, 1″ optical format for excellent detail and sensitivity
• Compact housing – 35 × 35 × 40.7 mm, lightweight for easy system integration
• C-mount lens interface for compatibility with a wide range of industrial optics
• Exposure time range: 1 µs to 16.777 s for flexible lighting control
• Gain control: Analog 0–18 dB, Digital ×1 to ×11.59 for optimized performance
• Advanced features: ROI scanning, decimation, binning, horizontal/vertical image flip
• Defective pixel correction for up to 512 pixels
•
