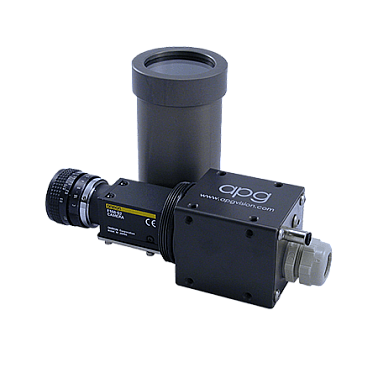

22C-AB NEMA 12 enclosure, Tool-less Access, No Aim Adjust For dust, dirt, dripping water

The 22C series enclosure was developed specifically for today’s 30mm x 30mm cross-section miniature inline cameras.

It will also accommodate lenses up to 48mm in diameter. It is especially useful for robot applications, and is small & light enough to be mounted on the arm or end effector.

The enclosure provides tool-less access to the camera & lens, and is available with either a standard PG16 drillable cord grip, or a bulkhead cable fitting for quick disconnect.

Other options include glass or acrylic windows, air cooling, and an air curtain option that blows a film of air over the outside of the viewing window. This is effective in keeping dust, water and oil mist off the window.

The enclosure comes standard with a clear hardcote anodized finish, and can be supplied in a variety of colors and finishes.
